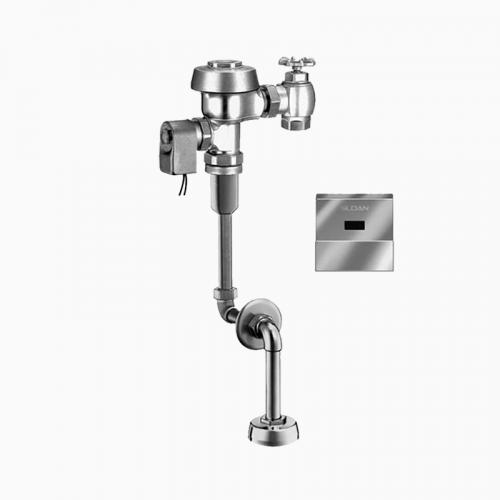

Sloan ROYAL 197 ESS-1.0-OR-11-12-3/4-LDIM-HW Sensor Urinal Flushometer (3453236)
Extremely low, hard to beat Sloan ROYAL 197 ESS-1.0-OR-11-12-3/4-LDIM-HW price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.
Details:
- Flush Volume: 1.0 gpf (3.8 Lpf)
- Finish: Rough Brass (RB)
- Power Type: Hardwired (HW)
- Valve: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Urinal
- Fixture Connection: Top spud
- Rough-In Dimension: 13-1/2" (343mm)
- Spud Coupling: 3/4" (19mm)
- Supply Pipe: 3/4" (19mm)
- L Dimension: 11"-12-3/4" (279-324mm) (11-12-3/4-LDIM)
- Override: Electrical (OR)
Features:
- Flush volumes start as low as a pint of water
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which, prevents urinal from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Sloan ROYAL 197 ESS-1.0-OR-11-12-3/4-LDIM-HW Urinal Flushometer Spec Sheet
Download the Sloan ROYAL 197 ESS-1.0-OR-11-12-3/4-LDIM-HW Urinal Flushometer Spec Sheet
