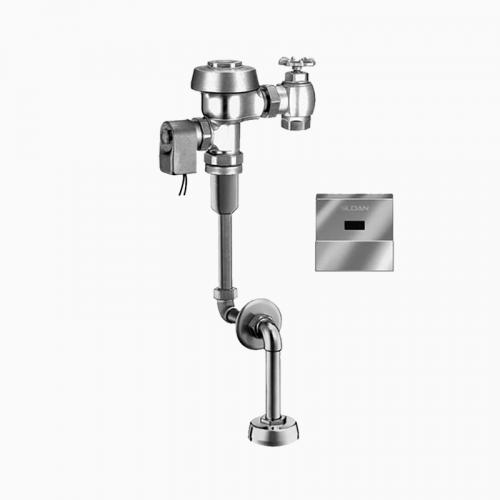

Sloan ROYAL 197 ESS-1.0-13-16-3/4-LDIM-HW Urinal Flushometer, Hardwired, Sensor Activated, Concealed, 13 Inch-16-3/4 Inch LDIM, 1.0 GPF

Our Price: $719.06
List Price: $1,106.25
You save $387.19

Average lead time 5-10 business days

SKU:
3453240
Availability:
In Stock

Average lead time 5-10 business days

SKU:
3453240
Availability:
In Stock

Sloan ROYAL 197 ESS-1.0-13-16-3/4-LDIM-HW Sensor Urinal Flushometer (3453240)

Sloan Valve Products Made in the USA and Qualify for the Buy American Act

Extremely low, hard to beat Sloan ROYAL 197 ESS-1.0-13-16-3/4-LDIM-HW price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.

Details:

  • Flush Volume: 1.0 gpf (3.8 Lpf)
  • Finish: Rough Brass (RB)
  • Power Type: Hardwired (HW)
  • Valve: Diaphragm
  • Valve Body Material: Semi-red Brass
  • Fixture Type: Urinal
  • Fixture Connection: Top spud
  • Rough-In Dimension: 13-1/2" (343mm)
  • Spud Coupling: 3/4" (19mm)
  • Supply Pipe: 3/4" (19mm)
  • L Dimension: 13"-16-3/4" (330-425mm) (13-16-3/4-LDIM)

Features:

  • Flush volumes start as low as a pint of water
  • Water conservation is aided by the ADA-compliant, non-hold-open handle, which, prevents urinal from exceeding intended flush volume
  • Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece
  • PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
  • Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037

Sloan ROYAL 197 ESS-1.0-13-16-3/4-LDIM-HW Urinal Flushometer Spec Sheet

Download the Sloan ROYAL 197 ESS-1.0-13-16-3/4-LDIM-HW Urinal Flushometer Spec Sheet
