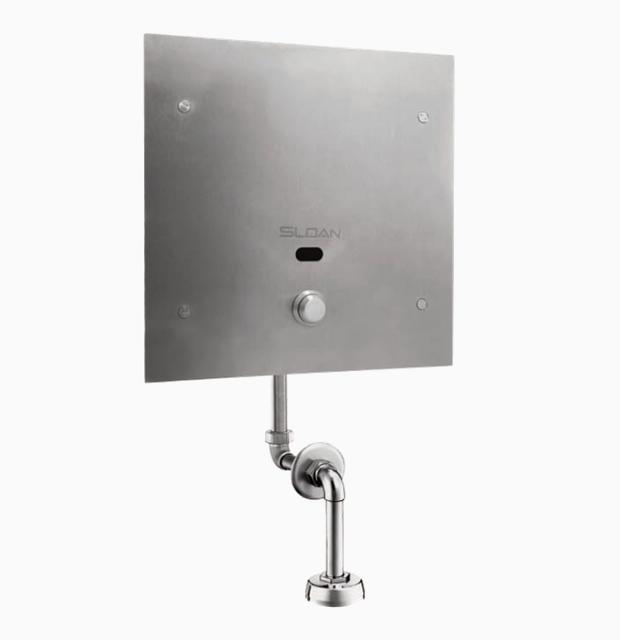

Sloan ROYAL 197 ESS-0.125-DBP-TMO-SWB-2-10-3/4-LDIM-HW Sensor Urinal Flushometer (3453291)
Extremely low, hard to beat Sloan Royal 197 ESS-0.125-DBP-TMO-SWB-2-10-3/4-LDIM-HW price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.
Optima® concealed urinal flushometers are designed to protect flush valve in high-traffic or vandal-prone restrooms, such as in schools or stadiums. Constructed of rough brass and engineered to be trouble-free, they are backed by Sloan’s best-in-industry warranty.
Sloan OPTIMA® equipped Flushometers provide the ultimate in sanitary protection and automatic operation. There are no handles to trip or buttons to push. The Flushometer operates by means of an infrared sensor that adapts to its surrounding. Once the user enters the sensor’s effective range and then steps away, the Flushometer Solenoid initiates the flushing cycle to flush the fixture.
Details:
- Flush Volume: 0.125 gpf (0.5 Lpf)
- Finish: Rough Brass (RB)
- Power Type: Hardwired (HW)
- Valve: Diaphragm
- Bypass: Dual-Filtered Bypass (DBP)
- Valve Body Material: Semi-red Brass
- Fixture Type: Urinal
- Fixture Connection: Top spud
- Rough-In Dimension: 13-1/2" (343mm)
- Spud Coupling: 3/4" (19mm)
- Supply Pipe: 3/4" (19mm)
- L Dimension: 2" - 10-3/4" (51 - 273mm) (2-10-3/4-LDIM)
- Override: True Mechanical (TMO)
- Wall Box: Small (SWB)
Sloan ROYAL 197 ESS-0.125-DBP-TMO-SWB-2-10-3/4-LDIM-HW Urinal Flushometer Spec Sheet
Download the Sloan ROYAL 197 ESS-0.125-DBP-TMO-SWB-2-10-3/4-LDIM-HW Urinal Flushometer Spec Sheet
