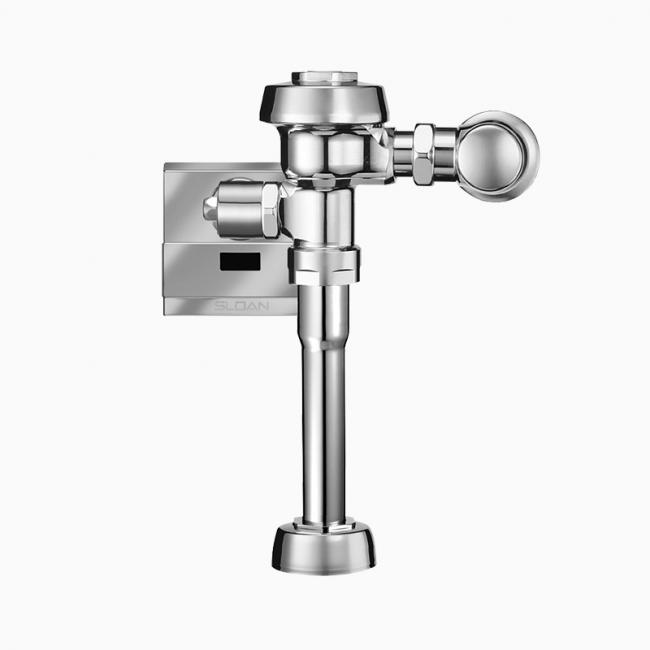

Sloan ROYAL 180 ESS-3.5-T-OR-RGL-PLT-HW Sensor Activated Urinal Flushometer (3452401)
Extremely low, hard to beat Sloan ROYAL 180 ESS-3.5-T-OR-RGL-PLT-HW price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.
Details:
- Flush Volume: 3.5 gpf (13.2 Lpf)
- Finish: Polished Chrome (CP)
- Power Type: Hardwired (HW)
- Valve: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Urinal
- Fixture Connection: Top spud
- Rough-In Dimension: 11-1/2" (292mm)
- Spud Coupling: 1-1/4" (32mm)
- Supply Pipe: 1" (25mm)
- Override: Electrical (OR)
- Wall Box: Regal Plate (RGL-PLT)
- Flush Connection: 1.5" (T)
Features:
- Sensor-activated, hardwired urinal flushometer
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- PERMEX synthetic rubber diaphragm with Dual Filtered Fixed Bypass
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Sloan ROYAL 180 ESS-3.5-T-OR-RGL-PLT-HW Urinal Flushometer Spec Sheet
Download the Sloan ROYAL 180 ESS-3.5-T-OR-RGL-PLT-HW Urinal Flushometer Spec Sheet
