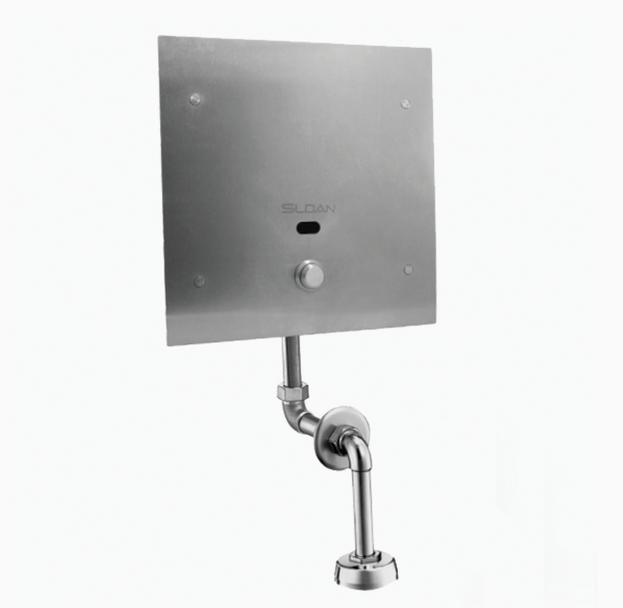

Sloan 197 ESS-0.125-DBP-TMO-SWB-2-10-3/4-LDIM-HW Sensor Activated Urinal Flushometer (3773227)
Extremely low, hard to beat Sloan 197 ESS-0.125-DBP-TMO-SWB-2-10-3/4-LDIM-HW price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.
Details
- Flush Volume: 0.125 gpf (0.5 Lpf)
- Finish: Rough Brass (RB)
- Power Type: Hardwired (HW)
- Valve: Diaphragm
- Bypass: Dual-Filtered Bypass (DBP)
- Valve Body Material: Semi-red Brass
- Fixture Type: Urinal
- Fixture Connection: Top spud
- Rough-In Dimension: 13-1/2" (343mm)
- Spud Coupling: 3/4" (19mm)
- Supply Pipe: 3/4" (19mm)
- L Dimension: 2"-10-3/4" (51-273mm) (2-10-3/4-LDIM)
- Override: True Mechanical (TMO)
- Wall Box: Small (SWB)
Features:
- No External Volume Adjustment to Ensure Water Conservation
- OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
- Vacuum Breaker with Flush Connection
- Spud Coupling for 3/4" Top Spud
- High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm
- 3/4" I.P.S. Wheel Handle Bak-Chek® Angle Stop
- Diaphragm Assembly, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine Resistance
Sloan 197 ESS-0.125-DBP-TMO-SWB-2-10-3/4-LDIM-HW Urinal Flushometer Spec Sheet
Download the Sloan 197 ESS-0.125-DBP-TMO-SWB-2-10-3/4-LDIM-HW Urinal Flushometer Spec Sheet
