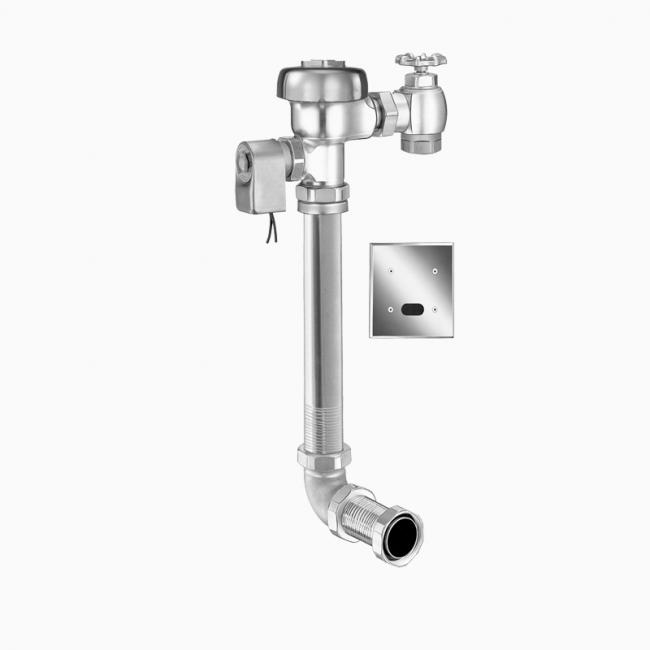

SLOAN 190 ESS-1.0-2-10-3/4-LDIM-HW Sensor Urinal Flushometer (3773002)
Extremely low, hard to beat SLOAN 190 ESS-1.0-2-10-3/4-LDIM-HW price. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Sloan supplier.
Details:
- Flush Volume: 1.0 gpf (3.8 Lpf)
- Finish: Rough Brass (RB)
- Power Type: Hardwired (HW)
- Valve: Diaphragm
- Valve Body Material: Semi-red Brass
- Fixture Type: Urinal
- Fixture Connection: Rear spud
- Rough-In Dimension: 14-1/2" (368mm)
- Spud Coupling: 1-1/4" (32mm)
- Supply Pipe: 1" (25mm)
- L Dimension: 2"-10-3/4" (51-273mm) (2-10-3/4-LDIM)
Features:
- Sensor-activated, hardwired urinal flushometer
- High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- High chloramine resistant PERMEX synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
SLOAN 190 ESS-1.0-2-10-3/4-LDIM-HW Urinal Flushometer Spec Sheet
Download the SLOAN 190 ESS-1.0-2-10-3/4-LDIM-HW Urinal Flushometer Spec Sheet
