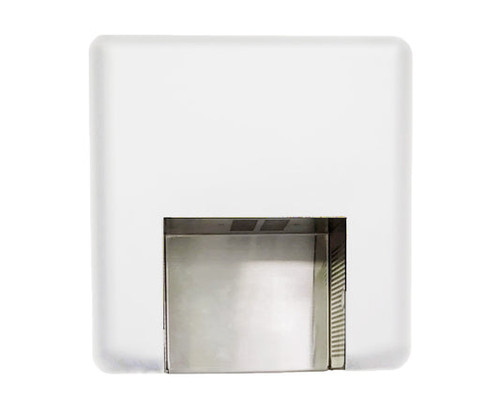

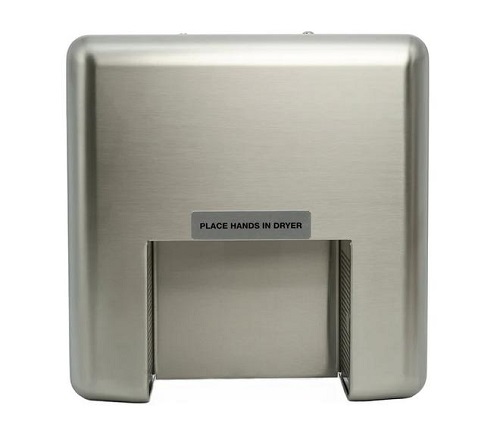

Pinnacle Dryers P3-12S Touchless Hand Dryer
The P3-12S is a touchless, surface mount hand dryer. It is automatic, vandal resistant, dries hands in 12-15 seconds, and comes with a 10-year warranty. This model extends 4" from the wall when installed.
Motor: Heavy duty, 7500 RPM, Double Insulated, CSA & UL Component Approved
Power Consumption: 11 amps 1.25 KW at 120 VAC Nominal
Fan Rotor: Pressed, Galvanized and Electrically balanced delivering 150 CFM
Heating Element: 1000W heavy duty, thermally protected to cut out at 85°C
Cover: 20 gauge stainless steel
Circuitry: All new solid-state circuitry has completely eliminated all mechanical parts. Unit is activated by an infrared sensor when hands are placed in drying chamber. Dryer operates only when in use.
Drying Time: Complete drying is accomplished in 15-20 seconds
Safety: Five levels of over temperature protection
Warranty: Limited 10-year warranty; 3 years on circuit board
