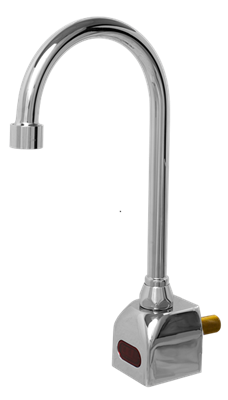

HydroTek HB-6700C-LR
The 6700C Series faucet is a piston operated sensory faucet that provides a vandal resistant, wall mounted, no touch solution that promotes better hygiene and energy savings. The 6700C Series faucet is ideal in clinics, hospitals, and manufacturing facilities for scrub stations.- ADA Compliant. Meets all barrier free codes
- Conserves water and energy
- Easily installed in new or retrofit applications
- Competitively priced for today’s commercial market
- Promotes cleanliness & hygiene
- Proven Hydrotek craftsmanship and reliability
FEATURES:
- ACCU-SENSE adjustable sensor eyes.
- Chrome plated, solid brass construction.
- Wall mountable, waterproof control box with armored, vandal resistant control and power cables.
- Preset/adjustable sensor ranges 6″ – 30″ for various installation requirements.
- Standard automatic time-out feature. Preset at 30 and adjustable to 0, 15, 60 seconds. Prevents accidental sink overflow.
- Shut-off delay is adjustable from 1 second (preset) to 8 seconds.
- Includes in-line filters with clean-out trap to reduce maintenance costs.
- Standard 6″ gooseneck spout and 2.0 GPM 0.5 GPM Laminar Flow Control.
- Single-hole, wall/splash mounting.
- All parts are field replaceable to ensure quick and easy repair.
- Same faucet is field switchable to/from AC Powered or Battery Powered.
- Slow closing, piston-operated solenoid valve provides reliable and smooth operation without water hammer.
- Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloromines or ammonia.
- Control module automatically performs a unique self-check of all electrical components.
- No-touch system enhances hygiene in medical, institutional, food service industries, etc.
- For the AC with DC Backup version, the battery backup picks up in the event of a power outage, ensuring that the faucet is always ready to go.
H-6700C AC Powered, non-mixing, Automatic Gooseneck Faucet:
Single-hole wall/splash mount, gooseneck, non-mixing automatic faucet with chrome plated, solid brass construction. Includes faucet, sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 6” gooseneck spout with 2.0 GPM Laminar flow control, 6V DC, slow-closing solenoid valve, plug-in power adapter with armored/vandal resistant output cable, 3/8” braided S.S. supply line, in-line filter and mounting hardware. Faucet unit is field convertible to battery operation with addition of optional battery holder and four (4) AA batteries. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset automatic time-out for 0 seconds but adjustable to 15, 30, or 60 seconds, preset shut-off delay for 1 second but adjustable up to 8 seconds.
HB-6700C Wall Mount Battery Operated, Non-Mixing, Automatic Gooseneck Faucet:
Single-hole wall/splash mount, non-mixing, automatic gooseneck faucet with chrome plated, solid brass construction. Includes faucet, sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 2.0 GPM Laminar flow control as standard, 6V DC, slow-closing solenoid valve, battery holder with (4) AA Batteries, 3/8” copper supply tube, in-line filter and mounting hardware. Faucet is field convertible to AC powered operation with addition of optional Plug-in Power Adapter. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset automatic time-out for 0 seconds but adjustable to 0, 15, 30, or 60 seconds, preset shut-off delay for 1 second but adjustable up to 8 seconds.
Download the Specsheet
