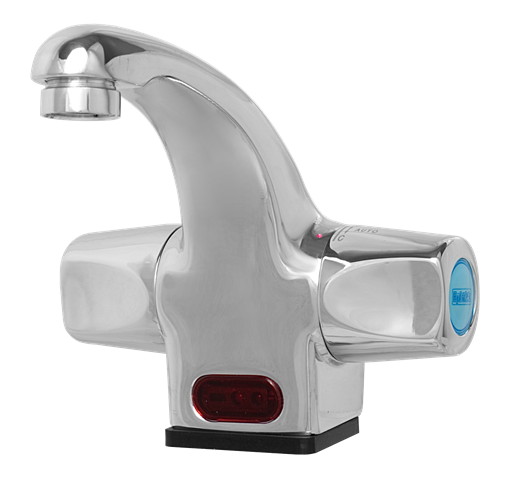

HydroTek HB-3000C
The 3000C Series faucet is a single-hole deck mount, piston operated sensory faucet that provides a vandal resistant, no touch lavatory solution with hot/cold mixing and manual on/off adjustments that promotes better hygiene and energy savings.- ADA Compliant. Meets all barrier free codes
- Conserves water and energy
- Easily installed in new or retrofit applications
- Competitively priced for today’s commercial market
- Promotes cleanliness & hygiene
- Proven Hydrotek craftsmanship and reliability
FEATURES:
- ACCU-SENSE adjustable sensor eyes.
- Chrome plated, solid brass construction.
- Wall mountable, waterproof control box with armored, vandal resistant control and power cables.
- Preset/adjustable sensor ranges 6″ – 30″ for various installation requirements.
- Standard automatic time-out feature. Preset at 0 and adjustable to 15, 30, 60 seconds. Prevents sink overflow.
- Shut-off delay is adjustable from 1 second (preset) to 8 seconds.
- Standard single-hole deck mount. Adapts to optional 4″ to 8″ cover plates.
- Includes in-line filter with clean-out trap to reduce maintenance costs.
- Same faucet is field switchable to/from AC powered or battery powered.
- Patented electronics and slow closing solenoid valve provide reliable and smooth operation without water hammer.
- Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloromines or ammonia.
- Standard 2.0 GPM Laminar Flow Control.
- Control module allows a unique self-check of all electrical components.
- Manual override provides continuous water flow for special applications or in case of power failure.
- Manually controlled temperature adjustment.
H-3000C AC Powered, mixing, Automatic Faucet with Temperature Control & Manual Override:
Single-hole deck mount, mixing, automatic faucet with chrome plated, solid brass construction with built-in temperature control and manual override. Includes faucet/sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 1.6 GPM Laminar Flow Control, 6V DC slow closing solenoid valve, plug-in power adapter with armored/vandal resistant output cable, two (2) 3/8” braided S.S. supply lines, two (2) in-line filter/check valves with two (2) 3/8” compression adapters and mounting hardware. Faucet unit is field convertible to battery operation with addition of optional battery holder and four (4) AA batteries. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range; preset/adjustable time-out feature (preset at 0 seconds and adjustable for 15, 30, or 60 seconds), preset/adjustable shut-off delay (preset at 1 second and adjustable up to 8 seconds).
HB-3000C Battery Operated, Mixing, Automatic Faucet with Temperature Control & Manual Override:
Single-hole deck mount, mixing, automatic faucet with chrome plated, solid brass construction with built-in temperature control and manual override. Includes faucet/sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 1.6 GPM Laminar Flow Control, 6V DC slow closing solenoid valve, battery holder with four (4) AA batteries, two (2) 3/8” braided S.S. supply lines, two (2) in-line filter/check valves with two (2) 3/8” compression adapters and mounting hardware. Faucet is field convertible to AC powered operation with addition of optional Plug-in Power Adapter. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset/adjustable time-out feature (preset at 0 seconds and adjustable to 0, 15, 30, or 60 seconds), preset/adjustable shut-off delay (Preset at 1 second and adjustable up to 8 seconds).
Download the Specsheet
