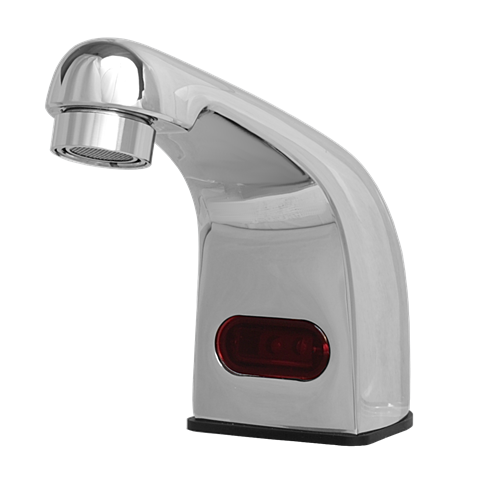

HydroTek H-2603C-LRDC
The 2603C Series faucet is a single-hole deck mounted sensory faucet that provides a vandal resistant, no touch lavatory solution that promotes better hygiene and energy savings.- ADA Compliant. Meets all barrier free codes
- Conserves water and energy
- Easily installed in new or retrofit applications
- Competitively priced for today’s commercial market
- Promotes cleanliness & hygiene
- Proven Hydrotek craftsmanship and reliability
FEATURES:
- ACCU-SENSE adjustable sensor eyes.
- Chrome plated, solid brass construction.
- Wall mountable, waterproof control box with armored, vandal resistant control and power cables.
- Preset/adjustable sensor ranges 6″ – 30″ for various installation requirements.
- Standard automatic time-out feature. Preset at 30 and adjustable to 0, 15, 60 seconds. Prevents accidental sink overflow.
- Shut-off delay is adjustable from 1 second (preset) to 8 seconds.
- Solid cast brass body with single hole deck mounting. Optional 4″ or 8″ cover plate for 3 point anchoring.
- Includes in-line filter with clean out trap to reduce maintenance costs.
- All parts are field-replaceable to ensure quick and easy repair.
- Same faucet is field switchable to/from AC powered or battery powered.
- Slow closing, piston-operated solenoid valve provides reliable and smooth operation without water hammer.
- Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloromines or ammonia.
- Standard 1.5 GPM Laminar Flow Control.
- Control module allows a unique self-check of all electrical components.
H-2603C AC Powered, Non-Mixing, Automatic Faucet:
Single-hole deck mount, non-mixing, automatic faucet with chrome plated, solid brass construction. Includes faucet, sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 1.6 GPM vandal resistant Laminar Flow Control, 6V DC, slow-closing solenoid valve, plug-in power adapter with armored/vandal resistant output cable, 3/8” copper supply tube, in-line filter and mounting hardware. Faucet unit is field convertible to battery operation with addition of optional battery holder and four (4) AA batteries. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset automatic time-out for 30 seconds but adjustable to 0, 15, or 60 seconds, preset shut-off delay for 1 second but adjustable up to 8 seconds.
HB-2603C Battery Operated, Non-Mixing, Automatic Faucet:
Single-hole deck mount, non-mixing, automatic faucet with chrome plated, solid brass construction. Includes faucet, sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 1.6 GPM vandal resistant Laminar flow control as standard, 6V DC, slow-closing solenoid valve, battery holder with (4) AA Batteries, 3/8” copper supply tube, in-line filter and mounting hardware. Faucet is field convertible to AC powered operation with addition of optional Plug-in Power Adapter. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset automatic time-out for 30 seconds but adjustable to 0, 15 or 60 seconds, preset shut-off delay for 1 second but adjustable up to 8 seconds.
Download the Specsheet
