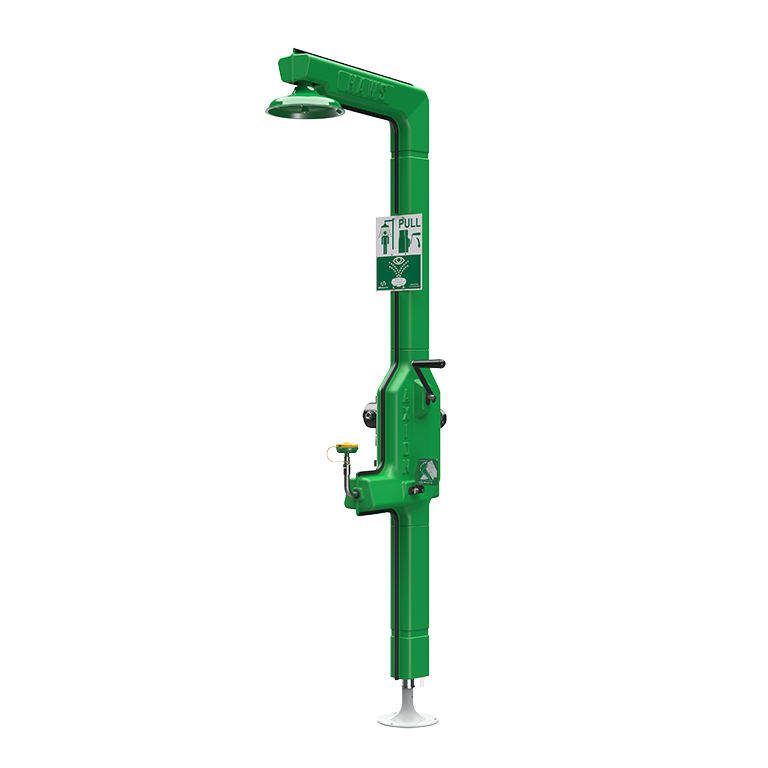

Haws 8315CTFP.220V AXION® MSR Freeze Protected Shower and Eye/Face Wash
Model 8315CTFP.220V Description
Heat traced combination 220 VAC shower and eye/face wash shall include the 3-way "easy activation, easy return" valve design that provides less 'dead leg' water, reducing the threat of Legionella growth. The compact design also allows for economical, safe and fast shipment via UPS. Also provided is the AXION® MSR hydrodynamic designed green ABS plastic 10-5/8" (26.9 cm) showerhead with integral self-regulating 20 gpm flow control, and AXION MSR eye/face wash head shall feature inverted directional laminar flow which achieves Zero Vertical Velocity™ supplied by an integral 4 gpm flow control. Unit shall also include thermostatically controlled electric heat traced cable protected by 1" (2.5 cm) insulation and an ABS plastic green jacket that prevents freezing down to ambient temperatures of -30° F, powder-coated cast-iron 9" (22.9 cm) diameter floor flange, universal sign, 1-1/4" NPT supply, and rated Class 1, Div 2, Group B, C & D with 1.09 amp max. (For Class 1, Div 1 application, please see the 8317CTFPC1D1)
Features
- Unique 3-way valve design reduces the amount of “dead leg” water in the system resulting in less opportunity for Legionella growth
- "Easy activation, easy return" static handle eliminates free-floating pull handle designs
- Reduced packaging size allows for UPS shipment with greatly lowered chance for shipping mishaps
- Perfect for extreme weather conditions dropping down to -30° F (-34.4° C)
- Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
- Electrical system and pressurized plumbing are factory-built and tested
- Basic layout is configurable to accept a variety of accessories to suit each specific installation, including thermal actuator bleed valves, drench hose, foot treadle, and re-circulation loop
- Galvanized steel pipe and fittings requires minimal maintenance and is equipped with test card to record weekly testing
- Rated Class 1, Div 2, Group B, C & D. Temperature code T6. Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment. Model is CSA electrical certified, TYPE 4. (Nema 4 equivalent)
Spec Sheet Links
Download the 8315CTFP.220V Spec Sheet
Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
