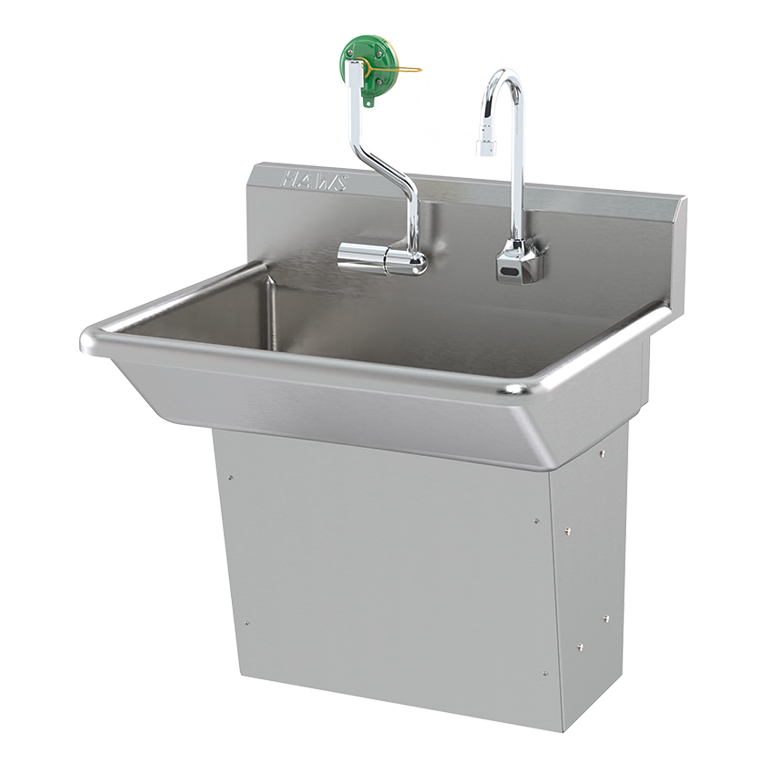

Haws 7660 Hand Wash Sink with AXION Eye/Face Wash
Model 7660 Description
Wall-mounted barrier-free hand wash sink equipped with a motion-activated goose-neck faucet. 24" wide 14 Gauge Type 304 Stainless Steel sink and wall supports incorporate a durable satin finish, and a removable front panel for access to the plumbing. Hand-wash motion-activated faucet provides 1.2 gpm of laminar flow, includes a separate 0.5 gpm laminar flow nozzle when low flow is required, and is powered via 110VAC wall power or battery power. Included is the Haws AXION MSR pulldown eye/face wash which features an inverted directional laminar flow and achieves Zero Vertical Velocity™, supplied by an integral 3.7 gpm flow control and yellow pop-off dust cover. An ASSE 1071-certified adjustable thermostatic mixing valve tempers the hot and cold water inlets, supplying both the faucet and the eye/face wash to ensure user comfort and ANSI compliance. 1-1/2" male NPT integral drain with 1-1/2" tailpiece and trap are included. Also included: universal eyewash sign and operation label, along with a full-sized rough-in template for easy installation.
Features
- 24" wide 14-gauge Type 304 Stainless Steel sink mounted on 14 gauge Type 304 Stainless Steel sink supports
- Integral to the sink construction is the 1-1/2" male NPT drain with 1-1/2" trap and tailpiece supplied
- Motion-activated faucet operation (operating on 110VAC or battery power) for safety and peace of mind
- Supplied with .5 gpm and 1.2 gpm laminar flow faucet nozzles, with an optional 2.2 gpm laminar flow nozzle available for higher flow applications
- Mixing valve included supplies tepid water to the eyewash and faucet
- Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
- Beautiful satin finish resists stains and corrosion
- Easy access to the mixing valve, faucet batteries, plumbing and drain through the large front panel
- Dimensions: 20" L x 24" W x 33-3/4" H
Certifications
- ADA Compliant
- CSA Certified
Spec Sheet Links
Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
