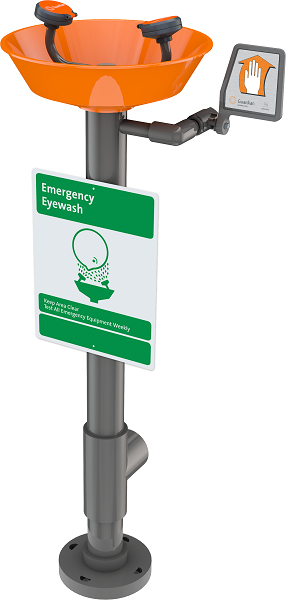

Guardian G1786 Eye/Face Wash

Model G1786 Description

Free standing, pedestal mounted eye/face wash. Constructed entirely in PVC and PVC-coated brass. Ideal for industrial environments where harsh acids or caustics are present. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face.

Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2" IPS PVC-coated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
Bowl: 11-3/4" diameter orange ABS plastic.
Pipe and Fittings: Schedule 80 PVC.
Supply: 1/2" NPT female inlet.
Waste: 2" socket weld female outlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.

Spec Sheet Links

Download the G1786 Eye/Face Wash Spec Sheet

Available Options (Call 888-503-7937 for fast help)

[GRN] Green ABS plastic bowl.
[YEL] Yellow ABS plastic bowl.
[G6020] Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
