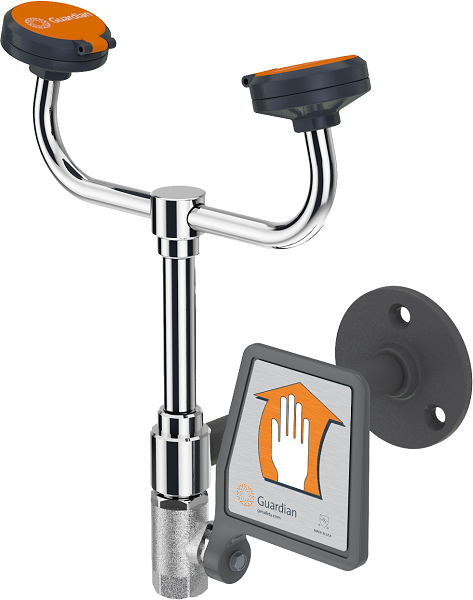

Guardian G1771 Eye/Face Wash

Model G1771 Description

Eye/face wash for wall mounting. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face. Unit is provided without bowl or drain for waste water. Note: Floor drain should be provided underneath unit to prevent accumulation of water on floor.

Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
Mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish.
Construction: Polished chrome plated brass.
Supply: 1/2" NPT female inlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.

Spec Sheet Links

Download the G1771 Eye/Face Wash Spec Sheet

Available Options (Call 888-503-7937 for fast help)

[HS] Auxiliary hand-held drench hose for rinsing eyes, face or body.
[G6020] Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
