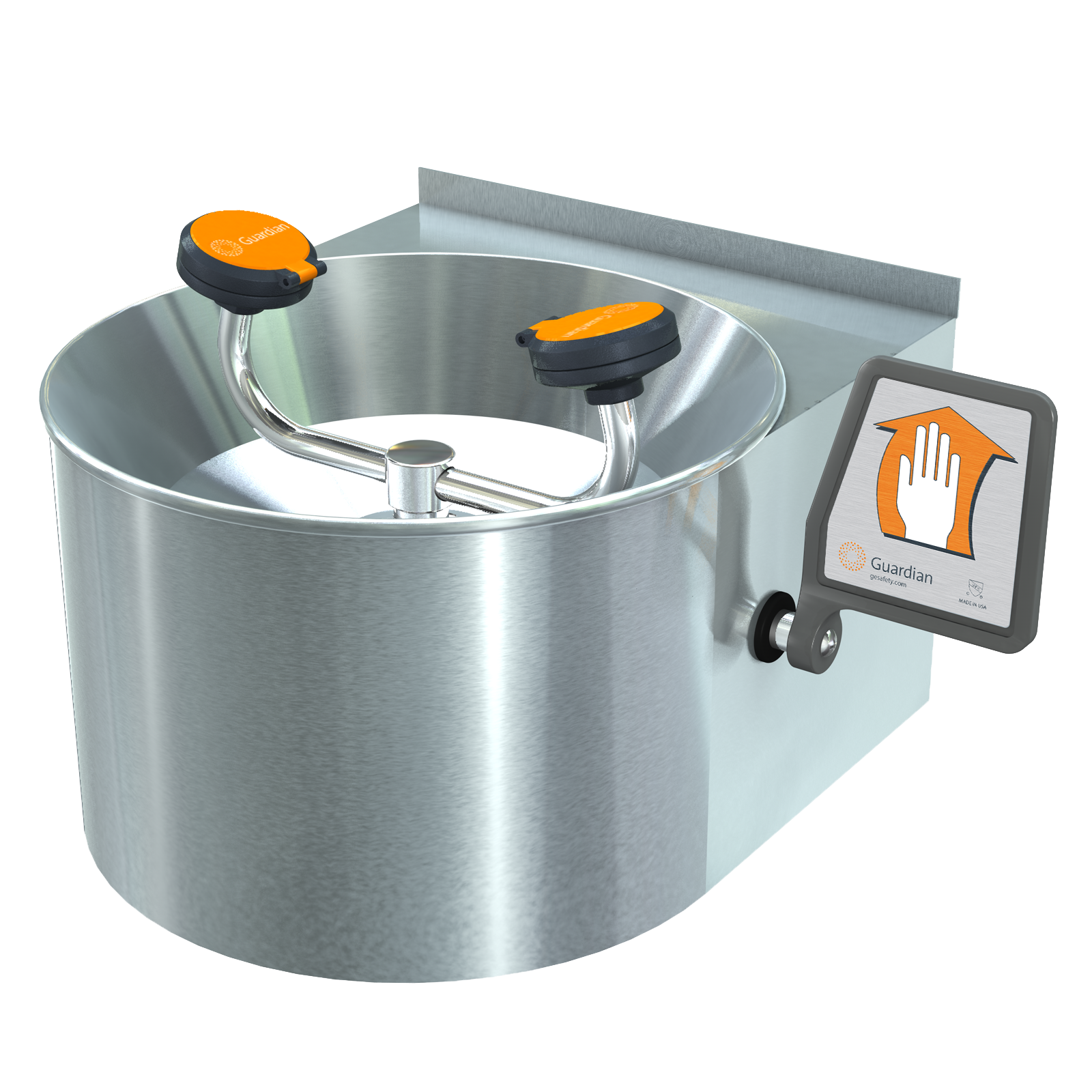

Guardian G1753 Eye/Face Wash

Model G1753 Description

Eye/face wash for wall mounting. Unit has stainless steel bowl and wrap-around skirt to conceal valve, drain and piping. Ideal for laboratories and other areas where clean, uncluttered appearance is desired.

• Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
• Valve: 1/2" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
• Bowl: 11-1/2" diameter stainless steel with wraparound skirt.
• Mounting: Welded stainless steel wall bracket.
• Supply: 1/2" NPT female inlet.
• Waste: 1-1/4" NPT female outlet.
• Sign: ANSI-compliant identification sign.
• Quality Assurance: Unit is completely assembled and water tested prior to shipment.

Spec Sheet Links

Download the G1753 Eye/Face Wash Spec Sheet

Available Options (Call 888-503-7937 for fast help)

• [HS] Auxiliary hand-held drench hose for rinsing eyes, face or body.
• [T] Chrome plated brass tailpiece and trap with 1-1/2" IPS waste connection.
• [TP] 1-1/2" OD chrome plated brass tailpiece.
• [G6020] Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
