Guardian G1629 Emergency Shower

Model G1629 Description

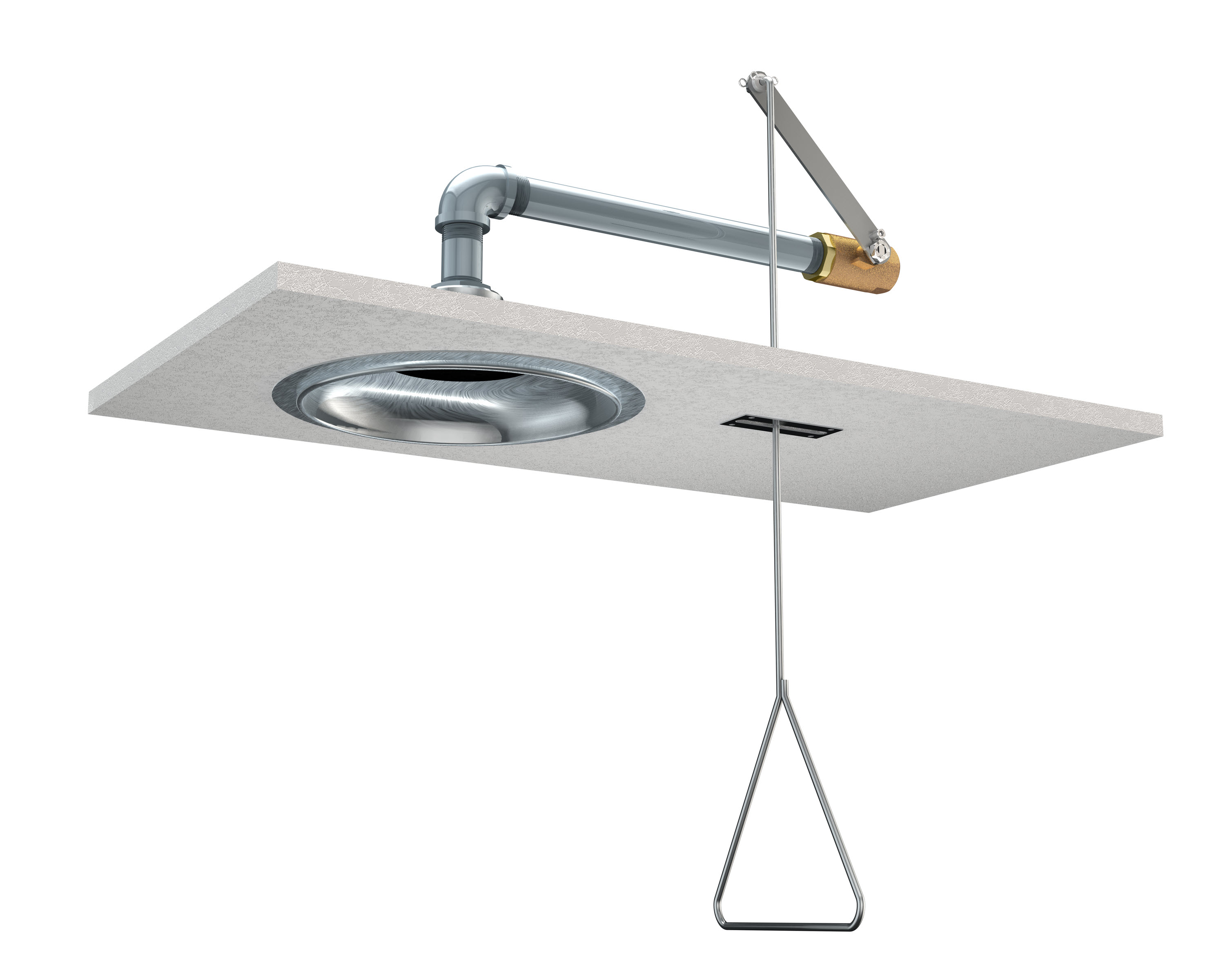

Emergency shower for recess mounting in a finished ceiling or soffit. Shower is activated by rigid pull rod.

Shower Head: 10" diameter with 20 GPM flow control and flange for flush mounting in ceiling. Shower head is stainless steel with stainless steel face plate.
Valve: 1" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals. Furnished with stainless steel actuating arm, 43" stainless steel pull rod and stainless steel ceiling guide plate.
Pipe and Fittings: 1" IPS galvanized steel.
Supply: 1" NPT female inlet.
Sign: ANSI-compliant identification sign.
Note: ANSI Z358.1-2014 provides that shower heads be installed no more than 96" above the finished floor. This unit should therefore not be installed in ceilings over 8 feet. For higher ceiling heights, we recommend the G1658 shower.

Spec Sheet Links

Download the G1629 Emergency Shower Spec Sheet

Available Options (Call 888-503-7937 for fast help)

[AP280-230] Electric flashing light and alarm horn unit for recess mounting in finished wall. Light illuminates and horn sounds when shower is activated. Furnished complete with flow switch and mounting hardware.
[G6040] Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 50 gallons (189 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency shower or combination safety station. Depending on water supply size and pressure, valve can supply multiple units.
