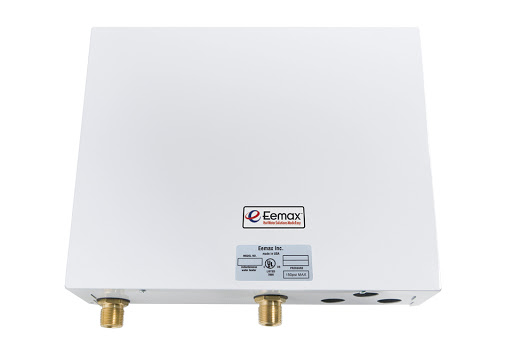

Eemax EX280T3-FS Series Three Electric Tankless Water Heater, Factory Set
Staged or Parallel Models (Three Heating Modules) Thermostatic Control
- T2T – Staged heating elements
- T3 – Parallel heating elements. Recommended for commercial uses only
- Factory set ambient to 180° (FS)
- Multi lavs. Staged up to 4 lavs (60°F-180°F) 110°F temp setting, 0.3 GPM turn on, aerators supplied (ML)
- Sanitation 180F° (S)
Features
- On demand hot water. Cuts energy waste. No stand-by heat loss.
- Thermostatic control. Microprocessor provides stable outlet temperatures
- Regulates power to required flow
- Continuous hot water. No storage capacity to run out
- Reduces installation cost and material. Requires only one cold water input line, no solder connections. No T&P relief valve needed (check local codes) or venting
- Easy installation with integral 3/4" NPT fittings
- Three glass-fiber reinforced heater bodies and Nichrome elements – a unique, patented flow path ensures optimum heat transfer and extended element life
- Warranty, five (5) years limited on leaks, one (1) year parts
- Field serviceable replaceable cartridge element
- Unit mounts on wall
- High temperature limit switch
Performance Specifications
- GPM Turn On: 2.0
- Max Operating Temp: Custom
- Minimum Operating Pressure: 25 PSI
- Max Pressure Rating: 150 PSI
Electrical Specifications
- Power: 28.5kW
- Volts: 240V
- Phase: Single
- Amperage: 119
- Recommended Wire Size: 3 sets of 8AWG
