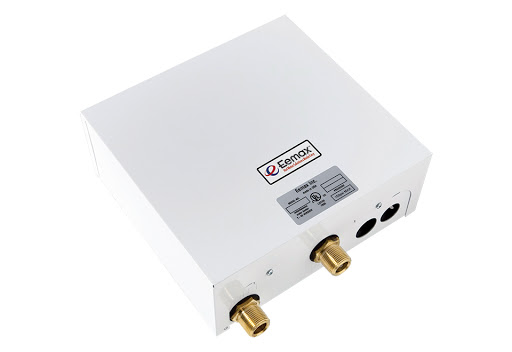

Eemax EX144TC-S Series Two Electric Tankless Water Heater for Sanitation
Staged Models (Two Heating Modules) with Thermostatic Control
- Factory set ambient to 180°F (FS)
- Multi lavs 0.3 turn on. Staged up to 4 lavs 105°F-110°F temp setting (ML)
- Sanitation 180°F (S)
Features
- Turns on in stages based on hot water demand
- On demand hot water
- Continuous hot water. No storage capacity to run out
- Reduces installation cost and material. No T&P relief valve needed (check local codes) or venting
- Easy installation with integral 3/4" NPT fittings
- Cut energy waste. Flow switch activates heater only on demand (no standby heat loss)
- Two glass-fiber reinforced heater bodies and nichrome elements – a unique, patented flow path ensures optimum heat transfer and extended element life
- Warranty, five (5) years limited on leaks, one (1) year parts
- Field serviceable replaceable cartridge element
- Unit mounts on wall
- High temperature limit switch
Performance Specifications
- GPM Turn On: 0.7
- Minimum Operating Temp: 100
- Max Operating Temp: 180
- Minimum Operating Pressure: 25 PSI
- Max Pressure Rating: 150 PSI
Electrical Specifications
- Power: 15kW
- Volts: 240V
- Phase: Single
- Amperage: 64 (2 x 40)
- Recommended Wire Size: 2 sets of 8 AWG
