Eemax ED032480T2T Three Phase Electric Tankless Water Heater
Triple Module, Commercial/Industrial Thermostatic 3-Phase Heater
- Emergency eye/face wash ANSI Z358.1 (EE)
- Factory set ambient to 180°F (FS)
- Multi lavs 0.3 turn on. Staged up to 4 lavs 105°F-110°F temp setting, aerators supplied (ML)
- Sanitation 180°F (S)

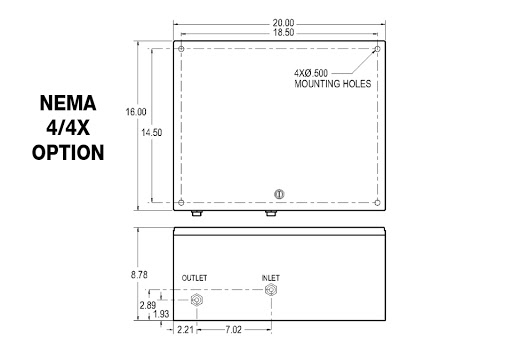

- N4, N4X (304SS) enclosures
Features
- Hot or cold water feed
- Available electrical models are 480V Delta (ED models) or 208V Delta (EX models) no neutral leg required

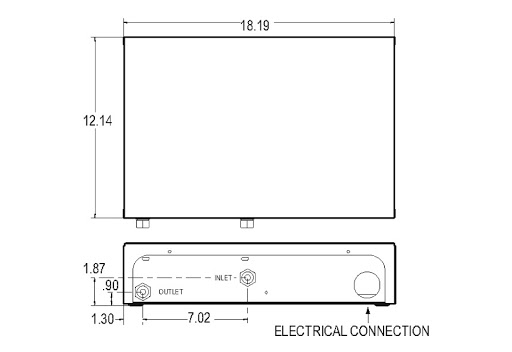

- Fitted with 1/2" compression fittings and electrical entry on the bottom
- Built in over temp protection
- Flow switch activates heater only on demand (no standby heat loss)
- Save water – "Point of use application"
- Continuous hot water – no storage capacity to run out
- Factory set temperature available. Range ambient to 180°F
- Capacity to 5 GPM (T3 only), 4 GPM (T2T)
- Thermostatic control. Microprocessor provides stable outlet temperatures
- Warranty, five (5) years limited on leaks, one (1) year parts
- Field serviceable replaceable cartridge element
Performance Specifications
- GPM Turn On: 0.7
- Minimum Operating Temp: 100
- Max Operating Temp: 140
- Minimum Operating Pressure: 25 PSI
- Max Pressure Rating: 150 PSI
Electrical Specifications
- Power: 32kW
- Volts: 480V
- Phase: Three
- Amperage: 38/phase
- Recommended Wire Size: 6AWG
