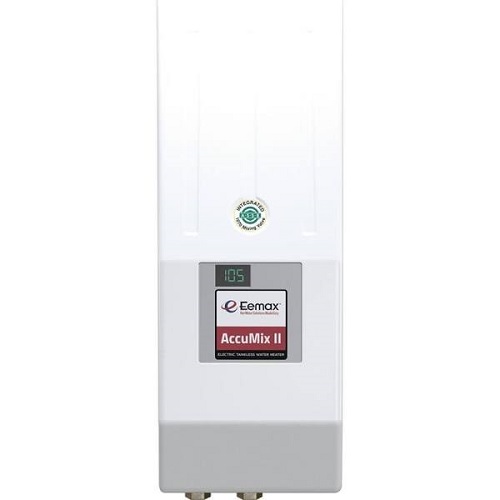

Eemax AM004277T AccuMix II Electric Tankless Water Heater
Electric Tankless Water Heater with integrated ASSE 1070 rated mixing valve for code compliant hand washing
Applications
- Handwashing
- Lavatory sinks
- Kitchen, bar, utility sinks
- Ideal for sensor or metering faucets
Features
- Integrated mixing valve meets ASSE 1070
- Unit meets UPC 407.3 requirements when properly installed
- Self-diagnostics with intelligent controls actively protect heater in installed environment
- SafeStart™ technology engages upon start-up to help avoid dry-fire occurrence
- Low activation with 0.3 GPM turn on flow
- Digital LED display communicates system status and heater operation feedback
- Silent operation on all models except for AM012240T
- Mounts in any orientation for a flexible installation
- Compact size fits almost anywhere; suitable for ADA compliant facilities
- Only one input line, hot or cold, needed for an easy installation
- Designed to deliver hot water to a single pipe faucet or mixing faucets
- Integral 3/8" compression fittings; no soldering or sweat connections required
- No T&P relief valve needed (check local codes); Ready to go, right out-of-the-box
- Save water and time by installing unit at the point-of-use
- Control system activates heater only on demand
- High temperature limit switch enables safe operation
- Active energy management with power modulation allows for thermostatic accuracy
- 5-year limited warranty on leaks, 1-year on parts
Electrical Specifications
- Power: 4.1kW
- Volts: 277V
- Phase: Single
- Amperage: 15
- Recommended Wire Size: 14 AWG
