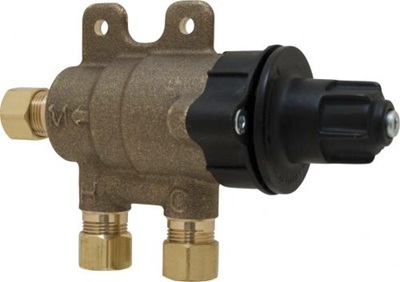

Chicago Faucets 131-ABNF ECAST?« Thermostatic Mixing Valve with Inlet Connections
Specifications:
- Standard 3/8" compression inlets and outlet
- Integral inlet check valves to protect against cross-flow
- Adjustment cap with locking feature
- Brass body construction
- Corrosion resistant internal components
- Thermostatic wax element design
- Thermostat controls both hot and cold water
- Installs between the stop valves and the faucet
- Single use or multiple faucet installations
- Minimum supply pressure: 30psi (207 kPa); Hot inlet temperature: 100??F-180??F (38??C-82??)
- Outlet water temperature will be less than hot water inlet temperature
- Includes wall bracket
- Minimum Flow Rate: 0.35 gpm (@ min. 20 psi)
- Maximum Flow Rate: 4.6 gpm (@ min. 125 psi)
- Temperature Out: 80??F to 120??F (27??C to 49??C)
