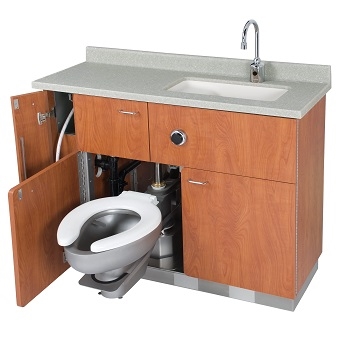

Bradley Corp LC750 Patient Care Unit, 47", Pivot Water Closet, Bedpan Washer
For all available options Download the Bradley LC750 Patient Care Unit Spec Sheet
Features:
- Combination Lavatory Water Closet Module
- Leak proof swing out water closet
- New Foot-operated Pedal Release
- Waste Outlet-Wall or Floor
- Terreon Countertop available in dozens of colors
- Stainless Steel Toilet and Base
- Double O-Ring Construction
- Bedpan Washer Standard
- Meets Low Flow Flushing Requirements
Cabinet:
Frame is stainless steel and requires floor anchoring. Cabinet exterior is 3/4" plywood with laminate finish in Wilsonart #1531-60 Light Beige. Interior finishes are laminate and satin finish stainless steel. Doors have rounded corners for greater patient safety, and will support a 250 lb. static load via full length stainless steel piano hinges. Toilet tissue holder is conveniently located inside the cabinet door. Side-mounted bedpan washer with drain is concealed behind a separate cabinet door.
Countertop:
Standard finish for MDF/laminate countertop is Wilsonart #4633 Natural Nebula. Other countertop selections include other laminates, stainless steel, Terreon, a densified solid surface material composed of bio-based resin or TerreonRE, a densified solid surface material composed of a bio-based resin and preconsumer recycled granules. Terreon and TerreonRE are resistant to chemicals, stains, burns and impact. Surface damage can be easily repaired with everyday cleansers or fine grit abrasives. Terreon and TerreonRE are GREENGUARD certified as low-emitting materials.
Lavatory:
Standard lavatory is 14 gauge stainless steel with factory-installed caulking. Measures 14-1/2" x 9-1/2" x 5" deep. Optional Terreon countertop features an integral 16-3/4" x 9-1/2" x 8" deep double step bowl with IV drip ledge. Furnished with 10" rigid gooseneck, deck-mounted hot and cold faucet with 4" wristblade handles. Optional valve selections include foot pedal or infrared faucet. Traps and stops complying with local codes to be furnished by plumbing contractor.
Toilet:
Toilet and support assembly are constructed of heavy gauge stainless steel. Siphon jet type toilet has an elongated bowl, integral flushing rim, remote-actuated hydraulic flushing system with push button, and a white seat with self-sustaining hinge. Toilet pivots into room and locks in position when cabinet door is open. 25 PSI minimum is required for flushing. Trap has a 3-1/2" seal that will pass a 2-1/8" diameter ball and is fully enclosed. Toilet is anchored to floor and will support a 2,500 lb. static load. A 1.6 gallon per flush (low flow) toilet is standard. Toilet assembly meets ANSI/ASME A112.19.2.
