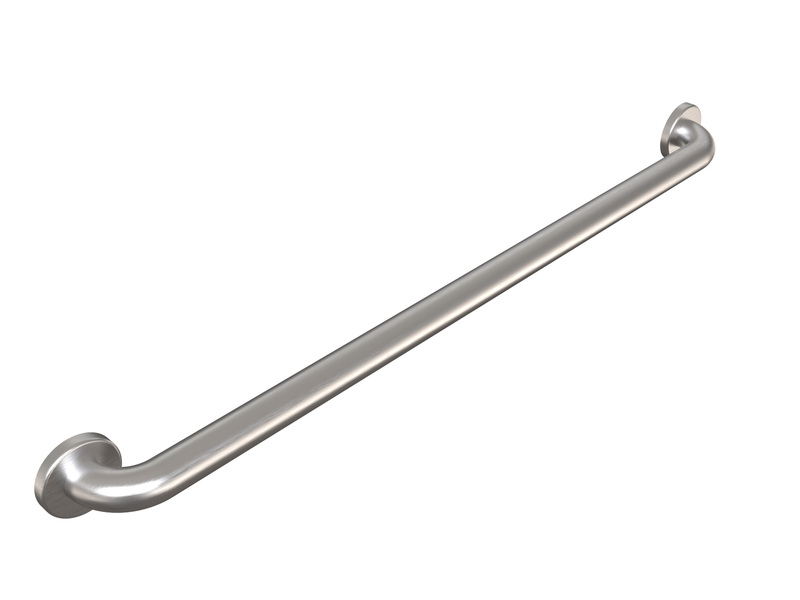

Bradley Corp 8120-001300

1½" O.D. heavy duty stainless steel grab bar with
concealed mounting:

Product Materials
FLANGES: 31⁄8" dia. 13 gauge stainless steel.
ESCUTCHEONS: 22 gauge stainless steel. One-piece drawn construction with exposed
surfaces in architectural satin finish. Snap over flanges to conceal mounting screws.
TUBING: 1½" O.D. 18 gauge stainless steel, seamless construction
with exposed surfaces in architectural satin finish. Bent ends of tubing pass thru the flanges and are
welded for maximum strength. Intermediate supports are contour cut and joined by
welding to form an integral part of the grab bar. All exposed welds ground and polished
to blend. Mandrel bending process maintains uniform bar diameter. Return provides 1½"
standard safety clearance between wall and bar.

Strength
When properly mounted, all Bradley heavy duty grab bar systems meet or exceed the
requirements of ANSI Standard A117.1, the ADA and ABA Accessibility Guidelines
for Buildings and Facilities (ADAAG), and the Uniform Federal Accessibility Standard
(UFAS).

Installation
Verify all rough-in dimensions prior to installation. Secure to wall where adequate in-wall
backing exists. Use bar as template to locate mounting holes. Drill holes and set anchors
as appropriate. Mount grab bar and secure mounting screws. Snap escutcheons into
place.

View Full Spec Sheet

Below is a chart of grab bar configurations that ship normally within 2-5 business days:
