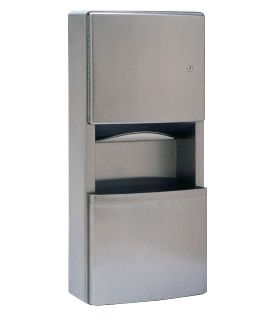

BOBRICK B43699

B43699

Features

• 2.6 gallon capacity waste receptacle
• Satin finish stainless steel
• Flush tumbler lock
• Dispenses 350 C-fold or 475 multi-fold towels
• Extends 2-1/2" from wall
• Removable front panel for easy cleaning
• Clips secure furnished reusable vinyl liner

Materials:
Cabinet — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction. Exposed surfaces have satin finish.
Skirt — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Radius on corners complement corners and edges
of flange, door, and waste receptacle.
Flange — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Drawn, one-piece, seamless construction. Radius
on corners and return edges complement corners and edges of door, skirt, and waste receptacle.
Door — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Drawn, one-piece, seamless construction. Front of
door has same degree of arc as front of waste receptacle and other Bobrick Contura Series washroom accessories. Radius on
corners and edges of door match side edges of waste receptacle and other Contura Series accessories. Secured to cabinet with
a full-length stainless steel piano-hinge. Equipped with a flush tumbler lock keyed like other Bobrick washroom accessories.
Paper Towel Dispenser — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Rounded towel tray has
hemmed opening to dispense paper towels without tearing. Capacity: 350 C-fold or 475 multifold paper towels.
Waste Receptacle — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Formed, one-piece, seamless
construction. Removable front panel has same degree of arc as front of door and other Bobrick Contura Series washroom
accessories. Top edge hemmed for safe handling. Radius on side edges of waste receptacle match corners and edges of paper
towel dispenser door and other Contura Series accessories. Secured to cabinet with two keyholes over studs on bottom and
two tamper-resistant setscrews on top. Equipped with interior clips for securing furnished reusable vinyl liner. Capacity: 2.6-gal.
(9.8-L).

Operation:
Paper towel dispenser will dispense C-fold or multifold paper towels without adjustment or use of adapters. To empty waste
receptacle, remove furnished reusable vinyl liner. Front of waste receptacle is removable for cleaning cabinet interior.

Installation:
Mount unit on wall with four #8 x 1¼" 4.2 x 32mm) sheet-metal screws (not furnished) at points indicated by an S. For plaster
or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal
screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 1/8"
(3mm) toggle bolts or expansion bolts. If unit projects above top of wainscot, provide aluminum channel or other filler to
eliminate gap between cabinet and finish face of wall.

Specification:
Surface-mounted paper towel dispenser and waste receptacle shall be type-304 stainless steel with all-welded construction;
exposed surfaces shall have satin finish. Front of paper towel dispenser door and waste receptacle shall have same degree
of arc and match other Bobrick Contura™ Series accessories in the washroom. Radius on corners and edges of flange, skirt,
door, and waste receptacle shall complement other Bobrick Contura™ Series washroom accessories. Flange shall be drawn,
one-piece, seamless construction. Paper towel dispenser door shall be drawn, one-piece, seamless construction; secured
to cabinet with a full-length stainless steel piano-hinge; and equipped with a flush tumbler lock keyed like other Bobrick
washroom accessories. Paper towel dispenser shall dispense 350 C?fold or 475 multifold paper towels. Waste receptacle shall
have a formed, one-piece, seamless, removable front panel with top edge hemmed and shall be equipped with interior clips for
securing furnished reusable vinyl liner. Capacity of waste receptacle shall be 2.6-gal. (9.8-L).
