BOBRICK B4288
Product Description

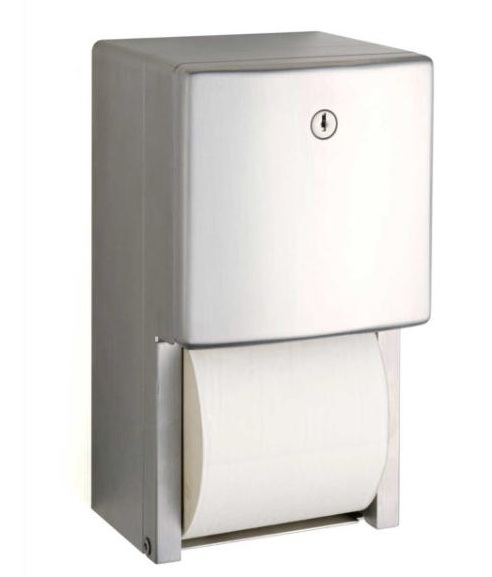

Bobrick B-4288 ConturaSeries Surface-Mounted Multi-Roll Toilet Tissue Dispenser
Satin-finish stainless steel with stainless steel dispensing mechanism. Flush tumbler lock. Holds two rolls up to 5-1/4" (133mm) dia. (1800 sheets).
MATERIALS:
Cabinet — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction. Exposed surfaces have satin finish. Radius
on top corners of cabinet match corners and edges of door.
Door — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with 18-gauge (1.2mm) stainless steel door frame. Exposed surfaces
have satin finish. Front of door is drawn, one-piece, seamless construction and has same degree of arc as other Bobrick Contura
Series washroom accessories. Radius on corners and edges of door match top corners of cabinet and other Contura Series
accessories. Secured to cabinet with two rivets. Equipped with a flush tumbler lock keyed like other Bobrick washroom
accessories.
Dispensing Mechanism, Inner Housing and Cam — 18-8 S, type-304, 18-gauge (1.2mm) stainless steel.
Spindles (2) — Heavy-duty, one-piece, molded ABS. Theft-resistant. Retained in dispensing mechanism when door is locked.
OPERATION:
Unit holds two standard-core toilet tissue rolls up to 5-1/4" (133mm) diameter (1800 sheets). Tissue rolls are loaded and locked
into dispensing mechanism. Extra roll automatically drops in place when bottom roll is depleted. Depleted rolls can only be
removed after unlocking door.
INSTALLATION:
For partitions with particleboard or other solid core, secure with four #10 x 5/8" (4.8 x 16mm) sheet-metal screws (not furnished)
at points indicated by an S, or provide through-bolts, nuts, and washers.
For hollow-core metal partitions, provide solid backing into which the sheet-metal screws can be secured. If two units are installed
back-to-back, then provide threaded sleeves and machine screws for the full thickness of partition.
For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet metal
screws.
For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 3/16" (5mm) toggle
bolts or expansion bolts.
SPECIFICATION:
Surface-mounted multi-roll toilet tissue dispenser shall be type-304 stainless steel with all-welded construction, including
dispensing mechanism, inner housing and cam; exposed surfaces shall have satin finish. Front of toilet tissue dispenser door shall
be drawn, one-piece, seamless construction and shall have same degree of arc and match other Bobrick Contura™ Series
accessories in the washroom. Radius on corners and edges of door and cabinet shall complement other Bobrick Contura™ Series
washroom accessories. Door shall be secured to cabinet with two rivets and equipped with a flush tumbler lock keyed like other
Bobrick washroom accessories. Unit shall dispense two standard-core toilet tissue rolls up to 5-1/4" (133mm) diameter (1800
sheets). Extra roll shall automatically drop in place when bottom roll is depleted. Unit shall be equipped with two theft-resistant,
heavy-duty, one-piece, molded ABS spindles.
