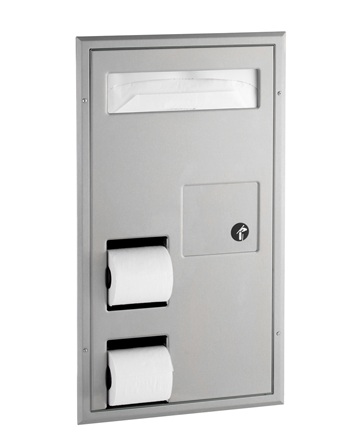

BOBRICK B3571
Classic Series Partition Mounted Combination Dispenser with Grab Bar Clearance
B3571
Features
- One side mounts flush against partition of barrier-free compartment to allow clearance for grab bar
- Used from both sides, serviced from one side
- 0.8 gallon capacity
- Holds 1,000 toilet seat covers & 4 rolls of tissue - 2 per compartment
- Theft resistant spindles
MATERIALS:
Cabinet — 18-8 S, type-304, heavy-gauge stainless steel. All-welded construction. Exposed surfaces have satin finish.
Equipped with a plastic sight-barrier panel for the toilet-seat-cover dispenser.
Flanges (2) — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Drawn and beveled, one-piece, seamless
construction.
Door & Permanent Panel — 18-8 S, type-304, 18-gauge (1.2mm) stainless steel with satin finish. One-piece, seamless
construction. Door is secured to cabinet with a full-length stainless steel piano-hinge and equipped with two tumbler locks
keyed like other Bobrick washroom accessories.
Toilet Tissue Dispensers (4) — .100" (2.5mm) thick ABS. Equipped with four theft-resistant, heavy-duty, one-piece,
molded ABS spindles.
Disposal Panels (2) — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with hemmed edges; exposed surface has satin
finish. Secured to cabinet with spring-loaded, full-length stainless steel piano-hinge. Equipped with international graphic
symbols identifying napkin disposal.
Waste Receptacle — Leak-proof molded polyethylene. Removable for servicing. Capacity: 0.8 gal. (3.0 L).
OPERATION:
Toilet-seat-cover dispenser is serviced from one side and holds 1000 single- or half-fold paper covers. Door unlocks with key
provided and swings open for filling. Spindles may be removed from cabinet when door is open; when door is closed,
removal requires a special key provided for the concealed locking mechanism in spindles. Receptacle is removable from one
side of unit for servicing. Unit holds four standard-core toilet tissue rolls up to 5-1/4" (135mm) diameter (1800 sheets), two
for each compartment.
Designer's Note: It is recommended that one full toilet tissue roll remain wrapped until the other roll has been depleted to
avoid wasting ends of both rolls. Disposable liners are available as an accessory for sanitary napkin disposal: order Bobrick
Part No. 353-12.
Bobrick B-3571 Spec Sheet
