(DISCONTINUED)
American Dryer GX1C Hand Dryer
| You Save: | Big Money $$$ |
| Manufacturer: | American Dryer |
| Model #: | GX1C |
| Priced Per: | Each |
| Shipping Weight: | 8 Lbs. |
| Control on/off limit: | 80 seconds |
| Cover: | Satin Chrome Plated Steel |
| HP: | 1/12 |
| Volts: | 110-120 |
| Amps: | 12 |
| Warranty: | 5 year |
Guaranteed lowest American Dryer pricing, anywhere! We are a trusted, Master Distributor for American Dryer. We will match or beat any online advertised price. Call 888-50-DRYER to talk with a sales rep right now!
 | Consider adding the ADA compliant wall guard to the ExtremeAir, Advantage or GX series hand dryers by American Dryer.
|
Lightning Fast Same Day Shipping is FREE of charge on all American Dryer Hand Dryers to anywhere in the continental US! The GX automatic hand dryers offer the best value in a maintenance-free hand dryer. The GX is designed to provide many years of trouble-free service. The stylish, compact design provides great performance while consuming less electricity.
Options include a heavy-duty steel cover with a durable white epoxy finish or a chrome plated satin finish. A recess kit is available for the GX-M.
Construction Features:
Cover – One-piece heavy duty, flame retardant ABS polymer with white finish. Optional one-piece 18 gauge steel cover finished with electrostatically applied, chip-resistant white epoxy finish (M), or chrome plated satin finish (C).
Motor – Permanently lubricated, maintenance-free, brushless induction motor with automatic resetting thermal protector. 1/12 HP, 3200 RPM.
Automatic Sensor – 100% solid state design eliminates relay contact failures. Microprocessor controlled infrared sensor turns dryer on when hands are under the air outlet. Dryer turns off when hands are removed. Override turns off in 80 seconds if hands are not removed.
Heating Element – Constructed of NiChrome resistance wire with automatic resetting thermostat. Heating element operates in the black range for maximum life.
Tamper Resistant – Two tamper resistant screws secure cover to base.
GENERAL INFORMATION:/

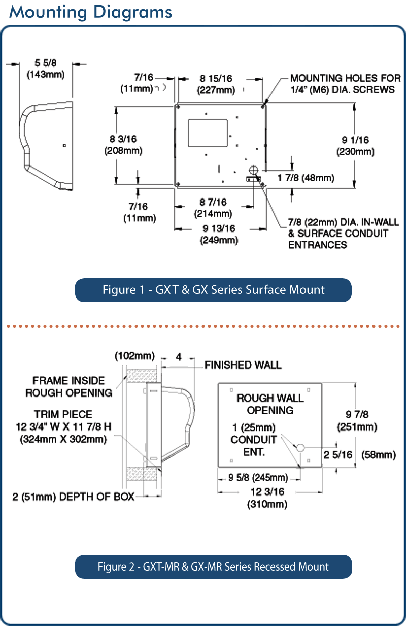

DRYER PLACEMENT:
Dryers should be placed at least 2 feet apart and at least 12” from washbasin. Do not install dryer over washbasin. Automatic dryers should be at least 18” above any projection which may interfere with the operation of the automatic sensor.
DRYER INSTALLATION:
Hand dryers require a dedicated circuit (max. 20 amp) and must be properly grounded. One side of dryer should be mounted to stud. All surface mount dryers are provided with conduit entrances for both between wall and surface wiring.
QUANTITY ESTIMATE, HAND DRYER:
Average traffic washroom..............1 dryer per 2 washbasins
Heavy traffic washroom..................1 dryer per washbasin
54” Bradley sink..............................4 dryers per sink
Click here for the full specification sheet
