World Dryer 112

Don't forget, FREE Shipping to lower 48 states on all of our products at ProDryers.com

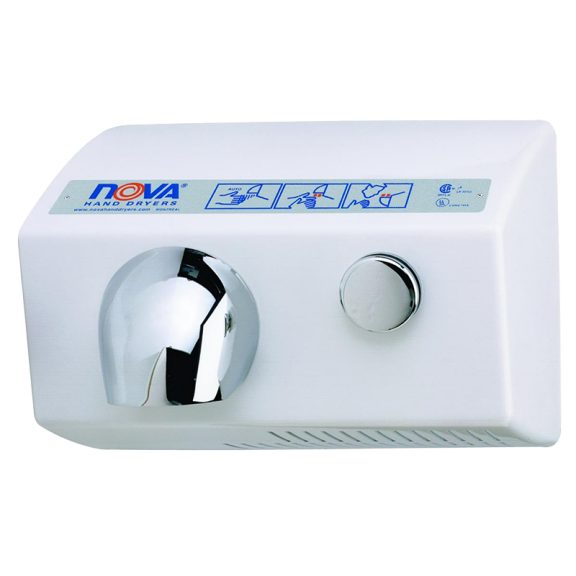

Nova 5 hand dryers are available in surface mounting with an optional recessing kit. The push button model is available with an adjustable timing feature which may be set at 15, 22, 26, 30, 36, 40, 80, 90, 120, 150 or 160 seconds.

Features

• Low amperage, quiet induction motor
• Motor is brushless, so no need for brush replacement
• Durable and vandal resistant.
• Dryers available in surface mounted or can be recessed with a kit.
• Push button models are available with adjustable dry timing
• Swivel nozzle to dry hands and face
• Nozzle shipped in the swivel position and can be locked to fixed position in the field
• Infrared sensor activation available
• Sound level of 74dB

Architectural Spec's

Nova 5 Model hand dryer shall be manufactured by or for Nova Dryers® to include a one-piece cover constructed of .09” thick die cast aluminum finished in brushed chrome plating or epoxy coating. Dryers shall be fitted with 360º revolving die cast aluminum nozzles finished in bright chrome plating. Surface-mounted covers shall be fastened by two flathead, recessed tamper-resistant bolts to a heavy-gauge steel wall plate, which in turn shall be fastened to the wall or a wall box by four concealed mounting bolts. (For recessed dryers only: A steel wall box shall be furnished into which a complete base assembly shall be mounted). The dryer shall be equipped with 30 air intake slots. The fan shall be protected by an aluminum die cast grating fixed into the blower housing. The entire mechanism shall be internally grounded throughout. The motor shall be brushless, 1/10 H.P., 3200 RPM, thermally protected. The fan shall be a large single inlet centrifugal type contained in an aluminum die cast housing. It shall deliver 148 cubic feet per minute of air volume (4700 LFM) and shall be mounted directly on the motor shaft. The heating element of nichrome wire shall be mounted on the air intake. It shall be protected by an automatic resetting circuit breaker (25 AMP) which shall open whenever the air flow is cut off and shall close when the flow of air is resumed. The element shall produce an air temperature of 142° F at a 72° F ambient room temperature outlet. The dryer shall be equipped with an infrared sensor which will allow the dryer to start automatically when hands are placed underneath the air nozzle, and to stop automatically when the hands are removed. For pushbutton dryers, timer shall be micro-chip based and microswitch activated. It shall be adjustable to allow for the required time cycle setting. Nova Dryers® shall be listed under reexamination service of Underwriters Laboratories, Inc.

Warranty
10 year limited, 5 year on sensor
